Hi ROS Community,

I want to introduce a new ROS development platform which we have offically launched a week ago.

ROSbot 2.0 is a mobile, autonomous robot platform based on CORE2-ROS controller (with ASUS Tinker Board).

Here are some of the main features:

  • aluminium chassis
  • 4 x DC motors with quadrature encoders drive
  • RGDB camera - Orbecc Astra
  • LiDAR - RPLIDAR A2
  • 4 x sharp distance sensors
  • extension interfaces grouped in the rear plate
  • badass looks :sunglasses:

f
f3405×3152 2.26 MB

c1
c12600×2242 1.48 MB
r
r4569×3578 2.3 MB

b
b4029×3385 1.92 MB

You can find full specs, documentation, and tutorials here: https://husarion.com/core2/manuals/rosbot-manual .

I would appreciate your comments and would be glad to answer any questions.

3 Likes
2

Btw, we have also prepared a detailed article about ROSbot 2.0 platform on medium, under this link: ROSbot 2.0 — a new, open-source autonomous robot platform | by Dominik Nowak | Husarion Blog | Medium

3

Do you have a github of all the files and documentation?

4

Hi Kevin, ROS tutorials (https://husarion.com/core2/tutorials/ros-tutorials/1-ros-introduction/) are here: static_docs_deprecated/src/core2/tutorials/ros-tutorials at master · husarion/static_docs_deprecated · GitHub , documentation is here: static_docs_deprecated/src/core2/manuals/rosbot-manual.md at master · husarion/static_docs_deprecated · GitHub . Soon more repos with code, examples etc. for ROSbot will be available.

5

Dear ROS community,

I’ve got a quick update regarding ROSbot 2.0 platform:

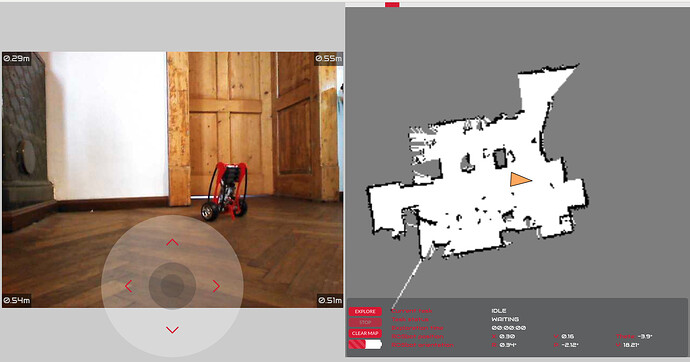

  1. We’ve introduced a new ROS-based web user interface for ROSbot. You can set it up in 5 mins in your local network or via the internet. Use ROSbot in both remote control and autonomous mode, and test its functionalities, without any coding. It’s open source an already on our GitHub page. Web UI works with any ROSbot 2.0 version and is available here: ROSbot 2 - quick start | Husarion

image1453×763 183 KB

  1. We’ve updated Sharp distance sensors to VL53L0X time-of-flight distance sensor, which offers bigger range, higher accuracy and higher immunity to interferences

  2. We’ve increased battery capacity from 2600 mAh to 3500 mAh

  3. We’ve improved the charging process by providing stronger and more reliable chargers

  4. We are now adding USB Ethernet Adapter to each ROSbot 2.0. set for quick network setup

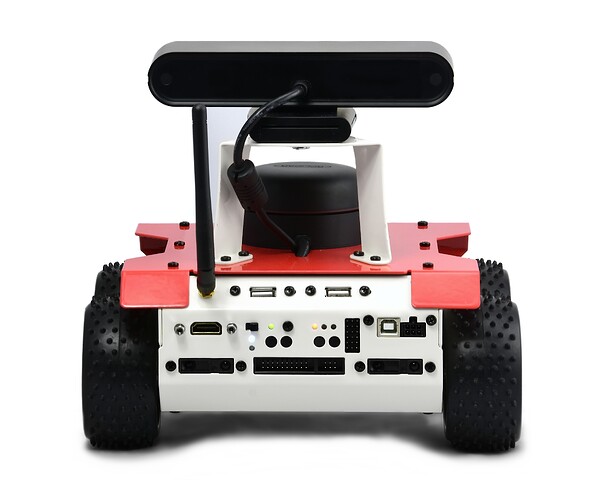

The complete set looks like this:

image800×583 92.4 KB

Full specs are available here: https://husarion.com/manuals/rosbot-manual/ .

Cheers!
